sprue

sprue

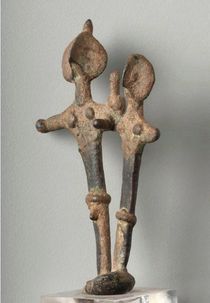

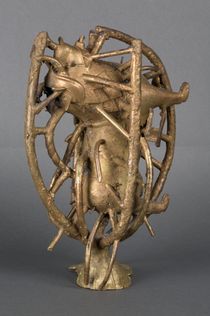

See figs. 44, 46, 71, 86, 124, 539.

Any channel that feeds metal to the mold, in contrast to a vent, which lets air escape. Both sprues and vents make up the “sprue system,” which circulates from the pouring cup through the and allows air and casting vapors such as steam to be released. In , “sprue” is the term used for the solid wax rods (rarely reeds or terra-cotta pipes) used to create the channels in the mold. Sprues are also the solid metal that has filled the channels upon cooling, which is generally removed during .

Note: The terms “sprue,” “sprueing,” “sprueing system,” or “sprue system” are most commonly associated with lost-wax casting. For the equivalent would be “gating” or “gating system,” which is where all the other terms (“runners,” “risers,” “gates,” etc.) come into play. In sand and casting the channels are cut directly into the refractory mold. See GI§2.7. Depending on the complexity of the , the sprue or gating systems may also contain other elements with special functions (e.g., reservoirs, chills, drains, traps, jets, etc.).

Figure 44
Figure 46
Figure 71
Figure 86
Figure 124
Figure 539

Sources

Historical:

Copper Industry: , 36–41

Art and Craft Textbook:

General Dictionary: https:​/​/​www​.merriam​-webster​.com​/dictionary​/sprue

Translations

French: jet de coulée

Conduit dans le pour le remplissage du moule par le métal liquide. Désigne aussi les mêmes éléments remplis de métal dont il faut débarrasser le bronze après la . Désigne, pour les , les éléments en cire servant à cette fonction.

Note: Dans la zone d’arrivée du métal dans le moule réfractaire est aménagé un « cône de coulée » pour faciliter la , et qui sert également de « masselote ». Les conduits servant pour l’évacuation des gaz portent un nom spécifique, évents (, 335; , 39–42; , 70–75; , 2:264; , 5; , 627; ; , 254, 373; , 66; , 269; ; ). Pour l’évacuation de la cire on parle de tire–cire (, 763). Certains auteurs emploient le terme d’artifices de fonderie (, 59; , 27). Pour certains d’entre eux (), les artifices de fonderie désignent également, dans le cas de moules à pièces, les éléments servant au positionnement des moules (artifices de centrage).

Sources

Cultural Heritage: , 626;

Copper Industry:

Alternate Translations

  • alimentation

    Il existe tout un répertoire de termes liés dont « système d’alimentation » (; Dubos pers. comm.; , 2; ). Dans l’industrie, le système d’alimentation a une définition très spécifique, c’est l’ensemble des conduits amenant du métal liquide pour compenser le retrait (, 2; ).

    Sources: Cultural Heritage: ; Copper Industry: ; , 2; Art and Craft Textbook:

  • canal de coulée

    Source: Cultural Heritage: , 66

  • jets

    Certains auteurs distinguent les jets des attaques, ces dernières désignant exclusivement les conduits reliant les jets à l’épreuve en cire (, 254; ). Il existe tout un répertoire de termes liés : attaques de coulée (, 2), système d’attaque ().

    Sources: Historical: , 335; Art and Craft Textbooks: , 39–42; , 70–75; , 5; , 253; Copper Industry: , 2; , 271

  • tranches

    Spécifique à la fonte au sable.

    Sources: Cultural Heritage: , 628; Art and Craft Textbook: , 253

German: Gusskanal

Source

, 696

Alternate Translations

  • Kanalnetz

    Source: , 555

  • Versorgungskanäle

Italian: getto

Term also found as part of expression getto di colata, referring to a gate or sprue that feeds the metal into the mold. The term is also used to describe a cast (act of casting) and (act of pouring, as well as content of the crucible).

Sources

, under fusione a cera persa; , 72–73

Alternate Translations

  • attacco

    Small section of sprue that is often used between the wax model and the longer gate or vent; also referred to as mozzicone

    Source: , 73

  • isfiattatoio

    Refers to vents; alternative modern term: sfiato; another alternative early Italian pronunciation/spelling: sfiatatoro

    Source: , 11, fols. 48, 50

  • mandata

    Refers to a sprue that feeds the metal into the mold vs. a vent that helps channel the air out

    Sources: , 220; , under mandata [definition 8, vol. 9, 625]

  • mozzicone

    Small section of wax sprue that is often used between the wax model and the longer gate or vent; also referred to as attacco

    Source: , 72–74

  • aria

    Refers to vent

  • bocca

    Refers to gate/runner

    Source: , 11, fols. 51v–52

  • canale di alimentazione

  • canale di colata

    Sources: , 353; , 193

  • colonna di alimentazione

    Source: , 72–74

  • entrata

    Refers to gate/runner

    Source: , fol. 81

  • esalatorio

    Refers to vent

    Source: , fol. 149v

  • gitto

    Refers to a gate (sprue that feeds the metal into the mold); also used to describe a cast (act of casting) and pour (act of pouring), as well as content of the crucible

    Source: , fols. 75–78, 89, 91

  • sfiatatoio

    Refers to vent; alternative modern term: sfiato; alternative early Italian: sfiatatoro

    Sources: , under sfiatatoio [definition 1, vol. 18, 875]; , under fusione a cera persa; , fol. 149r; , fols. 81, 89-89v

  • spiraculo

    Refers to vent

    Source: , fol. 89

Chinese: 浇铸道

Source

TNATD

Alternate Translations

  • 浇口

    Sources: , 740; TNATD

  • 竖浇道

    Source: TNATD

  • 铸口

    Source: TNATD

  • 铸道

    Source: TNATD
