Art & Architecture Thesaurus Online
3. Editorial Rules, continued
back to previous page

3

EDITORIAL RULES, CONTINUED



3.5



Associative Relationships

Included in this chapter

  • Example
    [from VCS, for "travertine"]



[from an end-user display, for "travertine"]







3.5.1





Related Concepts



3.5.1.1





Definition
Associative relationships to other concept records in the AAT, including various types of ties or connections between concepts, excluding genus/species (hierarchical) relationships. Related Concepts are also called Related Terms (RT) in the jargon of thesaurus construction.



3.5.1.2





Values
Values for the Related Entity are concatenated automatically by the system, using the preferred name and other information from the linked record.



3.5.1.3





Sources: Warrant for linking the concepts
The same standard general references that are appropriate for the Scope Note may be used to determine which concepts are related. See 3.4 Scope Note.



3.5.1.4





Discussion
A Related Concept is an associative relationships between the AAT record at hand and another AAT record. Only clear and direct relationships should be recorded. These direct relationships are typically current, but occasionally may be historical.

  • Given that associative relationship may be used for retrieval, it is recommended not to frivolously make links between Related Concepts. Relationships should be made only between records that are directly related, but where hierarchical relationships are inappropriate. If a thesaurus is bound together by too many associative relationships between entities that are only loosely or indirectly related, the value of the relationships in retrieval is lost. Consider this question: If the end-user is interested in retrieving Concept X, will he or she also want to retrieve Concept Y? If not, probably there should not be an associative relationship between the two records.











3.5.1.5





RULES











3.5.1.5.1





Minimum requirements
Adding a Related Concept is required when necessary, as described under Relationship Type below.

  • Link concepts that contain terms that are semantically or conceptually linked, but are neither equivalents (synonyms) nor hierarchically related.


3.5.1.5.2



When to make Associative Relationships
Make links to Related Concepts when it is useful to the end-user to have a cross-reference to the other concepts and when the concepts are directly related to each other but they do not have a hierarchical relationship. Think in terms of retrieval: Would such a link be useful in a search engine? If the concept records are clearly related but they are not linked via the hierarchy, create an associative relationship to prevent the conceptual link from being lost. In the examples below, the Related Concepts are in different hierarchies from the record for watercolors.

      • Example
        [for "watercolors" paintings]
      • Relationship Type: equipment needed/producing is
        Related Concept: watercolor brushes (<artists' brushes by function>, artists' brushes, ... Furnishings and Equipment)

        Relationship Type: material(s) used/producing is
        Related Concept: watercolor (water-base paint, <paint by composition or origin>, ... Materials)

        Relationship Type: material(s) used/producing is
        Related Concept: watercolor paper (drawing paper, <paper by function>, ... Materials)

        Relationship Type: creator(s) is
        Related Concept: watercolorists (<painters by technique, implement, or material employed>, implement, ... People)

  • Guide terms
    Associative relationships may be made between concept records, between a concept record and a guide term record, and between two guide term records.
      • Example
        [for the guide term "<bookbinding and bookbinding processes and techniques>"]
      • Relationship Type: equipment needed/used is
        Related Concept: <bookbinding equipment> (<equipment by process>, equipment, ... Furnishings and Equipment)

  • Confusion between two concepts
    If there is a significant possibility that two concepts may be confused by knowledgeable AAT users, link them as Related Concepts.
      • Example
        [for "airfields"]







    • See the list of Relationship Types below for further examples of when to make Related Concepts.

  • Homographs
    If the only cause of potential confusion is that the descriptors or other terms are the same or similar, do not link them as Related Concepts. Make a Qualifier for both terms to distinguish them from each other (see Chapter 3.3: Terms).

    • In the rare event that the historical meanings of the terms have changed, explain it in the Scope Note and link the terms as Related Concepts.

      • Example
        [for "dinoi"]
      • Scope Note: Used by modern scholars to refer to ancient Greek large, round-bottomed bowls that curve into a wide, open mouth, and that often stood on a stand. Metal vessels of this shape were probably used for cooking and those made of terracotta were used for mixing wine and date from the mid-seventh through the late fifth centuries BCE. They are distinguished from "lebetes" by their larger size. Ancient literary evidence suggests that the term was originally applied to drinking cups rather than bowls, and that such bowls were at that time called "lebetes."
      • Relationship Type: related to
        Related Concept: lebetes (vessels, <containers by form>, ... Furnishings and Equipment)

  • Hierarchical vs. Associative Relationships
    Do not make associative relationships when hierarchical relationships are more appropriate. Generally, concept records that have the same parent or grandparent, or that have a parent/child relationship themselves, should not be linked as Related Works. An exception is for the Relationship Type distinguished from (see discussion of Relationship Types below).

    • If you are tempted to make an associative relationship, but none of the Relationship Types seems to fit, you probably have an invalid associative relationship (generally because a hierarchical relationship would be more appropriate). For example, if the editor were creating the term compluvia, and the Scope Note reads: Apertures in the center of roofs of atriums in ancient Roman houses, sloping inward to discharge rainwater into a cistern or tank, called an impluvium, there would be a close relationship between compluvia ((<openings by location or context>) and impluvia (<plumbing and stormwater system components>). However, none of the Relationship Types adequately conveys the association. Therefore, the editor may realize that compluvia and impluvia should instead be siblings under the parent atriums (Roman halls), and the editor would then make atriums (Roman halls) the non-preferred parent (see 3.1 Hierarchical Relationships).













3.5.2





Relationship Type











3.5.2.1





Definition
A phrase characterizing the relationship between the concept at hand and the linked concept.











3.5.2.2





Values
Values are chosen from a controlled list comprising a code and phrase. Each code-plus-phrase is linked to another code, which is the reciprocal relationship.

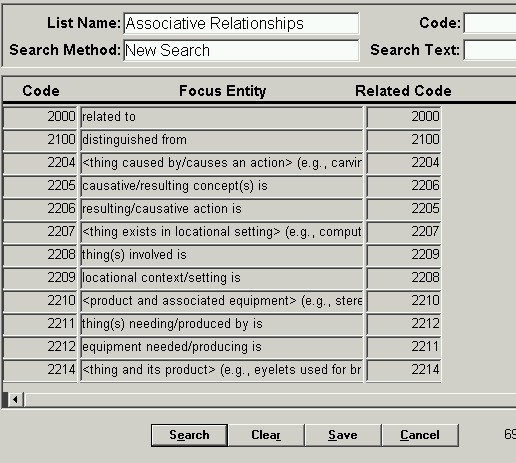

      • Example
        [partial view of controlled list from VCS]











3.5.2.3





RULES











3.5.2.3.1



Appropriate Relationship Types
It is required to include a Relationship Type for each Related Concept.

  • Choose a specific suitable Relationship Type, if possible. Use the broad related to as a default if a specific one is not appropriate.

  • Link to the correct side of the relationship
    Remember that Relationship Types are reciprocal (that is, linked to both records). When you choose a Relationship Type, make sure that the Relationship Type and its counterpart will work from the points of view of both linked records. Be very careful! There are hundreds of mistakes in the AAT where editors have linked to the wrong side of the relationship.

    • For example, if you are in the record for naive artists and you want to link to naive art, you should use 2326 creation/product(s) created is because you are linking to the creation naive art.

2325

creator(s) is

2326

2326

creation/product(s) created is

2325

    • Test: The Relationship Type should make sense in a string or phrase like the following one, where the focus record is the one you are editing and the target record is the one to which you are linking:

Focus Record - Relationship Type - Target Record
[for] naive artists - creation/product(s) created is - naive art

  • Avoid Redundant Relationships
    Link a concept to another concept only once. If multiple relationships apply, choose the predominant or best one.

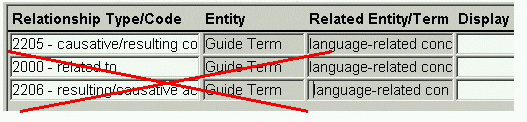

      • Example
        [NOT this, for "languages," three links to the same Related Concept, only the Relationship Type differs]


  • Relationships mentioned in the Scope Note
    Important relationships related to the meaning or usage of the term should be mentioned in the Scope Note and often linked as an associative relationship. This relationship is often distinguished from, but you should use whatever Relationship Type is compatible with the description in the Scope Note. The examples below illustrate various ways to refer to distinguished from relationships in the Scope Note. See also 3.4 Scope Note.

      • Examples
        [in the record for "rock-cut churches"]
      • Scope Note: Churches comprising spaces that have been cut into the living rock. They are distinguished from "cave churches," which utilize natural cavities in the earth's surface.
      • Relationship Type: distinguished from
        Related Concept: cave churches

        [in the record for "eaves"]
      • Scope Note: Refers to the horizontal portions of a sloping roof that project beyond the walls. For portions of the roof projecting beyond the gable, use "verges."
      • Relationship Type: distinguished from
        Related Concept: verges

        [in the record for "realia"]
      • Scope Note: Generally, refers to all physical objects or physical phenomena not produced by humans. The universe of physical objects is often divided into realia, which are naturally occurring objects and phenomena, and "artifacts," which are human-made objects and phenomena. Specifically, in library classification systems, realia are physical objects that are not the books, periodicals, or sound recordings typically cataloged by libraries. Specifically, in education, realia are objects from nature, home, or otherwise from real life that are used in classroom instruction.
      • Relationship Type: distinguished from
        Related Concept: artifacts

  • Quick reference for Relationship Types
    The code number of the relationship guide term occurs at the intersection of the two sides of the relationship. For example, a relationship between a person (top row) and an activity (left column) is guide term number 2310 <person and an activity>. Where there is no guide term, the number represents the relationship type itself.



person activitity thing location style general (anything to anything) species material
person 2280 2310 2325-creation
2320-equipment
2290        2314
activity 2310   2426-creation
2430-equipment
2204-causes
         2414
location 2290 2420 2207
thing 2325-creation
2324-equipment
2426-creation
2430-equipment
2204-causes
2214-produces
2210-equipment
2800-conjuncted
2804-context
2813-comprise
2207 2550      2500
field of study 2284 2410 2396 2407
condition 2600  2606  2603
material 2314 2414 2500         2807-common source
2813-comprise
2816-transform
style     2550   2804-context
2807-common source
2820-based on
2810-preceded
2808-coexisted
2823-parallels

general (anything to anything)           2000-related to
2001-formerly related
2100-distinguished from
2110-overlaps with

species     2840       2830
 person activity thing location style general species material







  • Definitions of Relationship Types
    Apply Relationship Types according to the definitions below.

    • For some relationships, the relationship type is the same on both sides of the link; however, for most it is different depending upon which record you are in. Be very careful to choose the correct relationship for the focus record (i.e., the record you are in when you make the relationship). Consider what will make sense when displayed to a user.

    • Do not link to the phrases in angled brackets; these serve as guide terms only.

   » List of relationship types:


  • general
    related to: General designation for relationships, where no specific relationship is known or appropriate. Also, legacy data from the old AAT editorial system may contain this relationship type. Replace it with a more specific one when you edit the legacy record.
    formerly related to: Use for relationships that no longer exist because the situation has changed or because the state of scholarship has changed regarding the appropriateness of the relationship.
    distinguished from: Use when there is a significant risk that two or more concepts could be confused or misused.
    meaning/usage overlaps with: Use when the terms are not synonyms and thus are recorded in separate records, but a significant part of the meaning or usage overlaps between the terms.

2000

related to

2000

2001

formerly related to

2001

2100

distinguished from

2100

2110

meaning/usage overlaps with

2110



      • Examples
        [in the record for "emergency housing"]
      • Relationship Type: related to
        Related Concept: crisis shelters

        [in the record for "piers (supporting elements)"]
      • Relationship Type: distinguished from
        Related Concept: columns (architectural elements)
        Relationship Type: distinguished from
        Related Concept: posts

        [in the record for "cave architecture"]
      • Relationship Type: meaning/usage overlaps with
        Related Concept: rock-cut architecture

    • 2204 <a thing causes/caused by an action>
      Use for relationships between processes or actions and a thing caused by or resulting from the process or action.


2205

resulting thing(s) are

2206

2206

causative action is

2205



      • Example
        [in the record for "carving (process)"]
      • Relationship Type: causative/resulting concept(s) is
        Related Concept: carvings (visual work)

    • 2207 <a thing exists in locational setting>
      Use for things that are associated with a particular location, context, or setting.


2208

thing(s) involved are

2209

2209

locational context/setting is

2208



      • Examples
        [in the record for "ball courts"]
      • Relationship Type: locational context/setting is
        Related Concept: hachas [ceremonial axes]

        [in the record for "computer centers"]
      • Relationship Type: thing(s) involved are
        Related Concept: computers

    • 2210 <a product and asscociated equipment>
      Use for things that are produced by equipment. Use only for unique things and equipment, not for common equipment that is used to make many things (e.g., you would not link scissors to all the things made by using scissors).


2211

thing(s) needing/produced by are

2212

2212

equipment needed/producing is

2211



      • Example
        [in the record for "stereoscopic cameras"]
      • Relationship Type: thing(s) needing/produced by are
        Related Concept: stereoscopic photographs

    • 2214 <a thing and its product>
      Use for things needed to produce a product. Only record unique relationships.


2215

product(s) needing/produced by are

2216

2216

thing(s) needed/used are

2215



      • Example
        [in the record for "eyelets"]
      • Relationship Type: product(s) needing/produced by are
        Related Concept: broderie anglaise

        [in the record for "basilica"]
      • Relationship Type: thing(s) needed/using are
        Related Concept: basilican plan

    • 2280 <person works/exists with another person>
      Use for people who work with, exist with, are otherwise closely associated with, or are counterparts of other people.


2281

counterpart is/works/exists with

2281



      • Example
        [in the record for "barons"]
      • Relationship Type: counterpart is/works/exists with
        Related Concept: baronesses

    • 2284 <a person and field of study>
      Use for persons who are involved in a field of study or discipline. See also 2285/2286 for persons involved in activities.


2285

practitioner(s)/student(s) are

2286

2286

field of study/discipline is

2285



      • Examples
        [in the record for "architects"]
      • Relationship Type: field of study/discipline is
        Related Concept: architecture (discipline)

        [in the record for "Egyptology"]
      • Relationship Type: practitioner(s)/student(s) are
        Related Concept: Egyptologists

    • 2290 <a person and locational setting>
      Use for persons associated with a locational context. Use only for unique relationships, not for locations common to multiple types of people.


2291

user(s)/inhabitant(s) are

2292

2292

locational setting is

2291



      • Example
        [in the record for "roperies"]
      • Relationship Type: user(s)/inhabitant(s) are
        Related Concept: rope-makers

    • 2310 <person and an activity>
      Use for persons who perform an activity, process, or technique. Use only for unique relationships. See also 2311/2312 for persons in a field of study.


2311

person(s) performing activity are

2312

2312

activity performed is

2311



      • Example
        [in the record for "clockmaking"]
      • Relationship Type: person(s) performing activity are
        Related Concept: clockmakers

    • 2314 <a person and a material>
      Use for persons who use materials. Use only for unique relationships.


2315

user(s) are

2316

2316

material used/needed is

2315



      • Example
        [in the record for "precious stone"]
      • Relationship Type: user(s)/producer(s) are
        Related Concept: lapidaries

    • 2320 <a person uses things/equipment>
      Use for persons who use equipment or other things. Use only for unique relationships.


2321

user(s) are

2322

2322

equipment is

2321



      • Example
        [in the record for "violoncellos"]
      • Relationship Type: user(s) are
        Related Concept: violoncellists

    • 2324 <a person creates things>
      Use for persons who create or produce objects or other things. Use only for unique relationships.


2325

creator(s) are

2326

2326

creation/product(s) created are

2325



      • Examples
        [in the record for "drawings"]
      • Relationship Type: creator(s) are
        Related Concept: draftsmen

        [in the record for "glassmakers"]
      • Relationship Type: creation/product(s) created are
        Related Concept: glassware

    • 2396 <field of study and a thing>
      Use for a field of study, discipline, or practice and thing(s) that are the focus of the field of study. Use for unique relationships.


2397

field of study/practice is

2398

2396

thing(s) that are focus

2396



      • Example
        [in the record for "religion (discipline)"]
      • Relationship Type: thing(s) that are focus
        Related Concept: religions

    • 2407<a field of study and a location>
      Use for a field of study or practice and the location where the study or practice takes place. Use for unique relationships.


2408

field of study/practice is

2409

2409

locational context/setting is

2408


      • Example
        [in the record for "religion and related disciplines"]
      • Relationship Type: locational context/setting is
        Related Concept: theological seminari

    • 2410 <a field of study and an activity/event>
      Use for a field of study or practice and an activity or event required for or closely associated with the field of study. Use for unique relationships.


2411

field of study/practice is

2412

2412

activity/event involved is

2411



      • Example
        [in the record for "cinematography"]
      • Relationship Type: activity/event involved is
        Related Concept: filmmaking

    • 2414 <an activity and materials>
      Use for materials needed for an activity or event. Use only for unique relationships.


2415

activity/event needing/produced by is

2416

2416

material required/producing is

2415



      • Example
        [in the record for "dyeing"]
      • Relationship Type: material required/producing is
        Related Concept: dye

    • 2420 <an activity and locational setting>
      Use for an activity or event and its locational setting. Use only for unique relationships.


2421

activity/event taking place is

2422

2422

locational setting is

2421



      • Example
        [in the record for "puppet theaters"]
      • Relationship Type: activity/event taking place is
        Related Concept: puppetry (performing arts)

    • 2426 <an activity and products>
      Use for an activity or event and the products produced by the activity or event. Use for unique relationships.


2427

activity/event producing is

2428

2428

document(s)/product(s) created are

2427



      • Examples
        [in the record for "collages"]
      • Relationship Type: activity/event producing is
        Related Concept: collage (technique)

        [in the record for "paper (fiber product)"]
      • Relationship Type: activity/event producing is
        Related Concept: papermaking

    • 2430 <an activity and equipment>
      Use for an activity or event and equipment used or needed. Use only for unique relationships.


2431

activity/event needing/using is

2432

2432

equipment needed/used is

2431



      • Examples
        [in the record for "masks (costume)"]
      • Relationship Type: activity/event using/producing is
        Related Concept: masquerades

        [in the record for "Easter"]
      • Relationship Type: equipment needed/used is
        Related Concept: paschal candles

    • 2500 <material and a thing>
      Use for materials used to make objects. Use only for unique materials that are used to make one particular type of work, not for common materials that are used to make many types of work (e.g., do NOT link stone to sculpture because stone is a common material used to make many things).


2501

material used/producing is

2502

2502

object(s) using/produced by are

2501



      • Examples
        [in the record for "mosaics (visual works)"]
      • Relationship Type: material used/producing is
        Related Concept: tesserae (mosaic components)

        [in the record for "stained glass (materials)"]
      • Relationship Type: object(s) using/produced by are
        Related Concept: stained glass (visual works)

    • 2550 <a style/period/culture and a thing>
      Use for a style, period, or culture that is uniquely reflected in or associated with an object, creation, or other thing.


2551

related style/period/culture is

2552

2552

thing(s) reflecting style/period/culture are

2551



      • Example
        [in the record for "Nasca lines"]
      • Relationship Type: related style/period/culture is
        Related Concept: Nasca

    • 2600 <person in a state or condition>
      Use for persons or organizations that are directly associated with a particular state or condition. Use only for unique situations, not for states or conditions that are common to multiple types of persons.


2601

related person(s) are

2602

2602

condition is

2601



      • Example
        [in the record for "adulthood"]
      • Relationship Type: related person(s) are
        Related Concept: adults

    • 2603 <things in a state or condition>
      Use for objects, materials, or other things that are directly associated with a particular state or condition. Use only for unique situations, not for states or conditions that are common to multiple types of things.


2604

related thing(s) are

2605

2605

condition is

2604




      • Example
        [in the record for "magnets"]
      • Relationship Type: condition is
        Related Concept: magnetism

    • 2606 <activities related to a state or condition>
      Use for activities that are directly associated with a particular state or condition. Use only for unique situations, not for states or conditions that are common to multiple types of activities.


2607

related activities are

2608

2608

condition is

2607




    • 2800 <a thing, material, etc. is closely associated with another>

    • Use for two things that are always located together or otherwise closely associated. Do not use for things that also have a hierarchical relationship to each other. It is generally not necessary to use this relationship for siblings under a single parent, unless there is an additional special relationship that will be lost without this associative relationship. See also 2805/2806 for things related contextually.


2801

conjuncted with

2801




      • Example
        [in the record for "cups"]
      • Relationship Type: conjuncted with
        Related Concept: saucers

    • 2804 <one thing is usually in the context of another bigger thing>
      Use for a thing,style, or material always seen or used in the context of another, typically larger thing. Do not use this relationship if the two things also have hierarchical whole/part relationships in the AAT. For things that are equal in the contextual relationship, use 2801 conjuncted with or 2808 coexisted with (for styles).


2805

contextual thing(s) are

2806

2806

thing(s) needing context are

2805



      • Example
        [in the record for "bookmarks"]
      • Relationship Type: contextual thing(s) are
        Related Concept: books

    • 2807 thing(s) derived from common source
      Use for things or materials derived from a common source. If the source object or material is also in the AAT and the two things are already linked to it, do not use this to redundantly link them to each other.


2807

thing(s) derived from common source

2807


      • Example
        [in the record for "peaches"]
      • Relationship Type: thing(s) derived from common source
        Related Concept: peach (hardwood)

    • 2808 <culture/style/period coexisted with another>
      Use for cultures or styles that coexisted in the same time and place, or were in the same place and significantly overlapped in time, even if they did not coexist for the entire period. Do not use for records that have a parent/child hierarchical relationship.


2808

coexisted with

2808


      • Example
        [in the record for "Sangoan" culture/style]
      • Relationship Type: coexisted with
        Related Concept: Fauresmith

    • 2810 <style/period preceded / followed>
      Use typically for styles/periods when one period followed another chronologically and 1) the periods are not linked as siblings in the hierarchy or 2) you wish to use the Date fields for the relationship (see Dates for Related Concepts below).


2811

preceded

2812

2812

followed

2811



      • Example
        [in the record for "First Dynasty (Egyptian)," the linked record is a sibling, but the editor needed to use the date fields for the relationship, thus the Associative Relationship was used]
      • Relationship Type: preceded
        Related Concept: Second Dynasty (Egyptian)
        Display Date: Second Dynasty began ca. 2775 BCE
        Start: -2785 End: -2765

    • 2813 <things, materials comprise another>
      Use for things or materials that comprise another thing or material. Do not use if there is already a hierarchical relationship between the things or materials. May be used to link components to their larger context, but see also 2805/2806 for things related contextually.


2814

constituent part/ingredient for

2815

2815

composed of

2814




      • Example
        [in the record for "lapis lazuli (rock)"]
      • Relationship Type: composed of
        Related Concept: calcite

    • 2816 <thing,material transforms into another>
      Use for things or materials that are transformed into another, whether by natural or artificial process.


2817

transformed from

2818

2818

transforms into

2817




    • Example
      [in the record for "obsidian"]
    • Relationship Type: transforms into
      Related Concept: pumice

    • 2820 <one concept/style/period is based on another>
      Use when one thing, material, or style/period is derived from another and the things/materials/styles/periods are not linked through the hierarchy. Do not use when both are in the same segment of the hierarchy (e.g., do not use it to link Renaissance and Baroque). Do not use when one thing or style/period simply influenced another. A relationship characterized by "influenced by" is not significant enough to warrant an associative relationship.


2821

is based on

2822

2822

is basis of

2821



      • Example
        [in the record for "Gothic Revival," which is in a different part of the hierarchy from "Gothic (Medieval)"]
      • Relationship Type: is based on
        Related Concept: Gothic (Medieval)












    • 2823 <one culture/style/period has parallels with another>
      Use to link two cultures or styles that seem to have developed from one another or from a common source, but where the relationship has not been firmly established by scholars or where scholars otherwise generally use imprecise language such as "closely associated with," etc.


2824

parallels exist with

2824


      • Example
        [in the record for "Chasseen," which has a relationship with Lagozza, but scholars are uncertain of the nature of the contact between the cultures]
      • Relationship Type: parallels exist with
        Related Concept: Lagozza

    • 2830 <species are related>
      Use to link one species or variety that evolved from another, whether by natural or artificial selection, when this relationship is not otherwise apparent from the hierarchy; the relationship should be the next known evolutionary ancestor, but it need not be an immediate ancestor, given that in the study of evolution, there are often gaps.


2833

ancestor of

2834

2834

descendant of

2833


      • Example
        [in the record for "donkey," which is a direct descendant of the "Equus asinus"]
      • Relationship Type: descendant of
        Related Concept: Equus asinus

    • 2840 <material made from species>
      Use to link a species or variety of animal or plant to the material derived from it. Link to the broadest applicable taxonomic level.


2841

derived from

2842

2842

source plant or animal for

2841


      • Example
        [in the record for "tortoise shell," which is derived from various species of tortoises; link is made to the broadest applicable level, the taxonomic order]
      • Relationship Type: derived from
        Related Concept: Testudines (order)

      • Example
        [in the record for "poplar (wood)" which is derived from the genus Populus]
      • Relationship Type: derived from
        Related Concept: Populus (genus)











3.5.2.3.2





Adding new Relationship Types
Most of the necessary Relationship Types should already be included in the controlled list. If you feel that you wish to add another Relationship Type to this list, consult with your supervisor.















3.5.3





Historical Flag











3.5.3.1





Definition
Flag indicating the historical status of the relationship of this AAT record to the Related Concept.

      • Example











3.5.3.2





Values
C - Current, H - Historical, B - Both, N/A - Not Applicable, U - Unknown











3.5.3.3





RULES

  • The default flag for the relationship is Current. In the AAT, it will rarely be necessary to use any flag other than Current. If you feel you should use another flag, discuss it with your supervisor.

    • Current: For relationships that still exist, even though they may have been established long ago, use Current. Most relationships in the AAT are current.

    • Historical: For a relationship that no longer exists because the meaning of the terms has changed. Do not use this flag without consulting your supervisor.

    • Both: For a relationship that is both current and historical. Do not use this flag without consulting your supervisor.

    • N/A: When Current or Historical are not appropriate to the situation. Do not use this flag without consulting your supervisor.

    • Unknown: This flag is used primarily for data that is loaded into VCS. Do not use this flag without consulting your supervisor.













3.5.4





Dates for Related Concepts











3.5.4.1





Definition
Dates delimiting the relationship between the two concepts.

      • Example
        [for "First Dynasty (Egyptian)"]











3.5.4.2





Fields
There are three fields: Display Date, Start Date, and End Date.











3.5.4.3





Values
Display Date is a free-text field; values may be any ASCII character; no special characters or diacritics are allowed; diacritics must be expressed according to the codes in Appendix A.

  • Start Date and End Date must contain valid years, as validated by VCS.











3.5.4.4





Sources
The dates should be determined using the same standard reference works that supply other information about the relationship.







3.5.4.5





Discussion
The Display Date for the relationship usually refers to a period or date, however, it may sometimes contain notes that do not explicitly make reference to a date. In such cases, the note should implicitly refer to a date or datable condition or event, because you are required to include a Start Date and End Date with every Display Date.

  • Display dates are indexed with Start Date and End Date. Start and End Dates are controlled by special formatting; dates BCE are represented by negative numbers.







3.5.4.6





RULES

  • Dates are not appropriate for most associative relationships in the AAT

    .
  • When dates are appropriate, keep in mind that if you enter data in any of the three fields, you must enter data in ALL three of the fields.

  • The dates appear on reciprocal links. That means that the same dates will appear in BOTH records. Write the Display Dates and assign Start and End Dates so that they will be correct and unambiguous in both records. Repeat the names of the concepts in the Display Date when necessary to avoid ambiguity.

      • Example
        [in the record for "rapiers"]
      • Relationship Type: thing(s) needing context is
        Related Concept: cup-hilts
        Display Date: cup-hilts were found on rapiers beginning in the 17th century
        Start Date: 1600 End Date: 9999

  • A brief set of rules for Dates appears below. See also Appendix B and Dates for Names in Chapter 3.3 Names.







3.5.4.6.1



Display Date
A short set of rules appears below. For further discussion of Display Dates, see Appendix B.

  • Follow the style of existing Display Dates.

      • Examples
      • Display Date: pertinent after 1520
        Start Date: 1520 End Date: 9999

      • Display Date: since the mid-18th century
        Start Date: 1730 End Date: 9999

      • Display Date: first used in Baroque paintings
        Start Date: 1590 End Date: 9999

  • Do not use an initial capital, unless the word is a proper name.

  • Do not use full sentences; do not end the display date with a period or any other punctuation.

  • Ideally, the display date should refer, explicitly or implicitly, to a time period or date associated with the link between the Related Concepts.

  • If a date is uncertain, use a broad or vague designation (e.g., ancient) or other terms such as ca. and probably to express uncertainty (e.g., ca., in the example below).

      • Example
      • Display Date: from ca. 1810 through 1940
        Start Date: 1800 End Date: 1940

  • In some cases, the Display Date may be used to record unusual or important information about the Related Concept relationship (see the example below), but not referring explicitly to a date. However, dates should be implicit in the condition or event mentioned and you should have a period or date in mind, because - if you record a Display Date - Start and End dates are required.

      • Example
      • Display Date: pertinent for native inhabitants along the seacoast from Niantic Bay to the Connecticut River
        Start Date: 1400 End Date: 1900




3.5.4.6.2



Start Date and End Date
Use dates that most broadly delimit the span of time of the relationship referred to in the display date. In many cases, the years will be approximate years. When in doubt, it is better to estimate too broad a span rather than too narrow a span. See the Date Authority in Appendix B for approximate dates of historic events and entities; you should also consult other, related records in the AAT to establish dates.

  • Dates must be expressed in the proleptic Gregorian calendar, which is the Gregorian calendar projected back in time before it came into existence.

  • Express dates BCE by negative numbers, using a hyphen before the number. Do not use commas or any other punctuation.

      • Example
      • Display Date: relevant only for Banshan urns
        Start Date: -2800 End Date: -2300

  • For current relationships, use the End Date 9999.

      • Example
      • Display Date: from 1810
        Start Date: 1810 End Date: 9999

  • For very ancient dates, expressed as years ago or before present in the Display Date, translate these dates into approximate years in the proleptic Gregorian calendar for the Start and End Dates.




Last updated 18 December 2008
Document is subject to frequent revisions






Back to Top

The J. Paul Getty Trust
The J. Paul Getty Trust
© J. Paul Getty Trust | Privacy Policy | Terms of Use
